The Aprilaire 700M humidifier is a high-capacity, fan-powered solution designed for whole-house humidification. It offers efficient operation and quiet performance, ideal for homes with forced air systems. This manual provides detailed installation steps, maintenance tips, and troubleshooting guidance to ensure optimal functionality and long-lasting performance. Proper installation is essential for achieving desired humidity levels and system efficiency. The unit is compatible with various HVAC systems and includes advanced features like a digital control for precise humidity management. By following the guidelines outlined in this manual, homeowners can enjoy improved indoor air quality and comfort year-round. Always refer to the manufacturer’s specifications and safety precautions to ensure a successful installation and operation. This guide is tailored to help users navigate the installation process smoothly and understand the system’s capabilities and requirements.
Overview of Aprilaire 700M Humidifier
The Aprilaire 700M is a high-capacity, fan-powered humidifier designed for whole-house humidification. It is compatible with forced air systems and can be installed on either the supply plenum or the cold air return duct. This unit is ideal for homes requiring consistent humidity levels, especially in dry climates. The 700M features a built-in fan that enhances water evaporation, ensuring efficient operation. It is designed to work seamlessly with HVAC systems, including heat pumps, and offers the flexibility of using hot or cold water supply for optimal performance. The humidifier includes a digital control system for precise humidity management, making it easy to adjust settings based on home conditions. With its robust design and advanced features, the Aprilaire 700M is a reliable solution for maintaining indoor air quality and comfort. Proper installation and maintenance are essential to ensure its longevity and efficiency.
Key Features and Benefits
The Aprilaire 700M humidifier offers several key features that make it a superior choice for whole-house humidification. Its high-capacity design ensures consistent moisture levels throughout the home, while the built-in fan enhances evaporation efficiency. The unit is compatible with both hot and cold water supplies, providing flexibility in installation. The digital humidifier control allows for precise adjustment of humidity levels, adapting to changing home conditions. This feature is particularly beneficial for maintaining optimal indoor air quality. Additionally, the 700M is designed to operate quietly, minimizing noise during operation. Its compatibility with various HVAC systems, including heat pumps, makes it a versatile solution for different home configurations. The humidifier also includes a straightforward maintenance design, with easy access to components for routine care. By improving humidity levels, the Aprilaire 700M helps reduce static electricity and moisture-related issues, enhancing overall home comfort and health. These features collectively ensure efficient, reliable, and long-lasting performance.
Tools and Materials Required

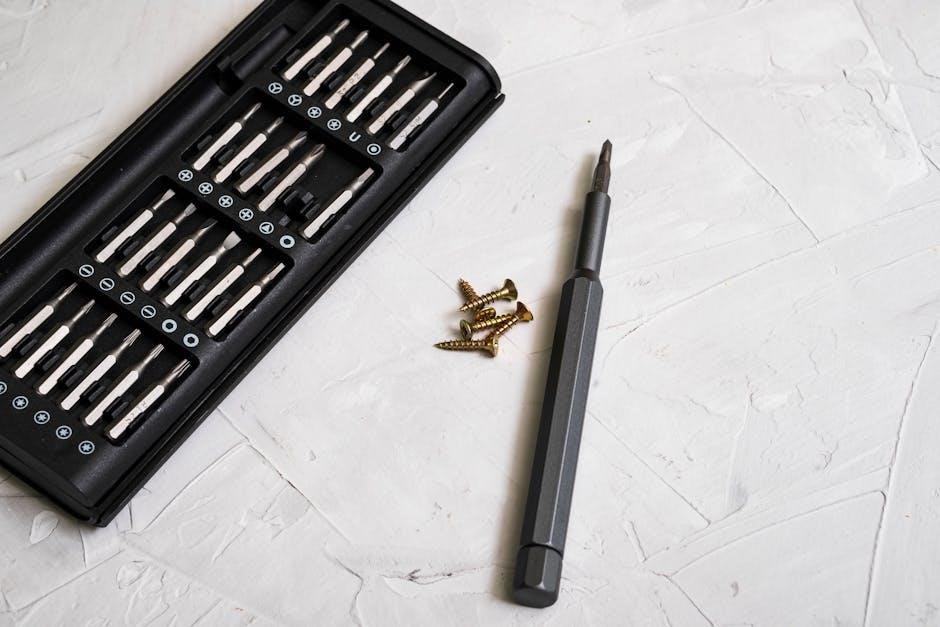

For a successful installation of the Aprilaire 700M humidifier, specific tools and materials are necessary. Ensure you have a screwdriver, drill, and wrench for mounting and connecting components. A tubing cutter and crimper are required for copper water line connections; Additionally, a 6-foot drain line kit and ¼-inch copper tubing are essential for water supply and drainage setup. Other materials include a 24V transformer, wiring connectors, and a digital humidifier control. For ductwork, you may need sheet metal screws and foil tape. Optional items like isolation valves and check valves can be useful for specific plumbing configurations. Proper tools and materials ensure a secure, leak-free installation and optimal performance. Refer to the manual for a detailed list to avoid missing any critical components. Gathering all necessary items beforehand streamlines the installation process and minimizes delays. Always follow safety guidelines when handling tools and materials to ensure a safe and efficient setup.
Pre-Installation Considerations
Before installing the Aprilaire 700M, evaluate the installation location, ensuring proper clearance and accessibility. Check electrical requirements and water supply options (hot or cold). Verify compatibility with your HVAC system, especially if using a heat pump, which requires hot water for optimal performance. Plan the drain line setup and ensure all necessary tools and materials are available. Consider duct placement and airflow direction to avoid reduced performance. Proper planning ensures a smooth installation process and optimal humidifier operation. Always follow manufacturer guidelines to achieve the best results and maintain system efficiency. Safety precautions and local building codes should also be reviewed to ensure compliance. A well-planned installation guarantees effective humidity control and system longevity.
Choosing the Installation Location
Selecting the right location for your Aprilaire 700M humidifier is crucial for optimal performance. The unit can be installed on either the supply plenum or the cold air return duct. However, avoid installing it on horizontal airflow ducts, as this may reduce efficiency. For heat pump systems, placing the humidifier in a location that allows the use of hot water is recommended, as it enhances evaporation. Ensure the chosen location provides adequate space for the unit and easy access for maintenance. The area should also accommodate the drain line and water supply connections. Additionally, consider the proximity to the HVAC system and ensure the location does not expose the humidifier to direct sunlight or excessive moisture. Proper placement ensures efficient operation, prevents issues, and maximizes the system’s lifespan. Always refer to the manufacturer’s guidelines for specific recommendations tailored to your setup.
Electrical Requirements and Connections
The Aprilaire 700M humidifier operates on a 24-volt low-voltage system, ensuring safe and efficient operation. It must be connected to a dedicated 24V AC power source, typically supplied by the HVAC system. The humidifier’s electrical connections should be made in accordance with the manufacturer’s instructions and local electrical codes. The unit is designed to operate in conjunction with the HVAC system’s blower motor, requiring a reliable connection to the system’s controls. Proper wiring ensures synchronized operation between the humidifier and the HVAC system. Always use the provided wiring diagram and follow safety precautions to avoid electrical hazards. The control module must also be connected to a 24V power source, typically derived from the HVAC transformer. Ensure all connections are secure and insulated to prevent issues. Testing the electrical connections after installation is crucial to confirm proper operation. These electrical requirements are essential for the humidifier to function efficiently and safely, ensuring optimal performance and reliability.
Water Supply Options (Hot or Cold)
The Aprilaire 700M humidifier can be connected to either a hot or cold water supply, offering flexibility based on your system’s needs. Hot water is recommended, especially for heat pump systems, as it enhances evaporation efficiency by supplementing the reduced supply air temperature. The water supply line should be connected to a 1/2-inch water line, ensuring proper flow and pressure. It is essential to check local water pressure specifications to avoid exceeding the unit’s operational limits. A shut-off valve should be installed for easier maintenance and servicing. While cold water can be used, hot water provides better performance, particularly in colder climates. Always ensure the water supply is clean and free from debris to prevent clogging and maintain optimal humidifier performance. Properly connecting the water supply is critical for the humidifier’s operation and longevity. Follow the manufacturer’s guidelines for installation to ensure a reliable and efficient water supply connection.
Compatibility with HVAC Systems
The Aprilaire 700M humidifier is designed to integrate seamlessly with most HVAC systems, including forced air systems. It can be installed on either the supply plenum or the cold air return duct, providing flexibility for different system configurations. However, models 700M and 700A are not suitable for installation on ducts with horizontal airflow, as this can reduce performance. The humidifier is compatible with heat pump systems, but it is recommended to use hot water in such cases to supplement the reduced supply air temperature, enhancing evaporation efficiency. Compatibility with HVAC systems ensures reliable operation and optimal humidity control. Always verify the system’s specifications to ensure proper integration and performance. This compatibility makes the Aprilaire 700M a versatile solution for various home heating and cooling setups, ensuring improved indoor air quality and comfort.
Installation Steps
Follow the step-by-step guide to install the Aprilaire 700M humidifier, ensuring proper preparation, mounting, and connections for water supply, drain, and electrical systems. Proceed methodically for optimal performance.
Preparing the Installation Site
Before installing the Aprilaire 700M humidifier, ensure the installation site is clean, dry, and free from obstructions. Choose a location with adequate space for the unit and easy access for maintenance. Verify that the site aligns with the humidifier’s dimensions and installation requirements. If installing on a heat pump system, consider using hot water for optimal performance. Ensure the area is clear of debris and any materials that could interfere with the installation process. Check for proper drainage options and verify the site’s compatibility with the humidifier’s specifications. If necessary, prepare the surface to ensure it is level and secure. Proper site preparation is crucial for a smooth installation and ensures the humidifier operates efficiently. Follow the manufacturer’s guidelines to guarantee safety and performance. This step sets the foundation for a successful installation, so take the time to assess and prepare the area thoroughly.
Unpacking and Inspecting the Unit
Begin by carefully unpacking the Aprilaire 700M humidifier from its shipping box. Inspect the unit for any visible damage or dents that may have occurred during transit. Ensure all components, such as the humidifier assembly, digital control, water panel, and mounting hardware, are included in the package. If any parts are missing or damaged, contact the supplier immediately. Gently remove any protective packaging materials and place the unit on a clean, stable surface. Verify that the unit is designed for your specific HVAC system configuration, especially if you have a heat pump or require hot water connection. Before proceeding with installation, double-check that the unit matches your order specifications. If you notice any issues, do not proceed with installation and consult a professional. Proper inspection ensures the unit is ready for installation and prevents potential issues down the line.
Mounting the Humidifier
Mounting the Aprilaire 700M humidifier is a critical step in the installation process. Begin by selecting a suitable location, ensuring it is level and secure. The unit can be installed on either the supply plenum or the cold air return duct, depending on your HVAC system configuration. Use the provided mounting brackets to attach the humidifier to the ductwork or a wall. Ensure the unit is level to prevent uneven water distribution and drainage issues. If mounting on a wall, verify that the surface is sturdy enough to support the weight of the humidifier when filled with water. Proper alignment and secure fastening are essential to maintain the unit’s stability and performance. Refer to the installation manual for specific mounting hardware and torque specifications. Improper mounting can lead to reduced efficiency or damage to the unit. Always follow the manufacturer’s guidelines for a secure and reliable installation. This step is foundational for ensuring optimal humidifier operation.
Connecting the Water Supply
Connecting the water supply to the Aprilaire 700M humidifier involves several key steps to ensure proper operation. First, determine whether to use hot or cold water, as recommended for your specific HVAC system. For heat pump systems, hot water is suggested to enhance evaporation. Locate a suitable water supply line, ideally near the water heater or under the sink, and turn off the water supply before starting. Use a saddle valve or appropriate connection kit to tap into the water line, ensuring compatibility with the humidifier’s requirements. Copper tubing or PEX is typically recommended, along with manufacturer-approved fittings to prevent leaks. If installed in a freezing-prone area, insulate or protect the water lines to avoid damage. Finally, ensure the water panel is easily accessible for future maintenance. Properly securing all connections will prevent leaks and ensure efficient operation. Follow the manual’s guidelines for optimal performance and longevity.
Setting Up the Drain Line
Setting up the drain line for the Aprilaire 700M humidifier is crucial for proper operation and to prevent water accumulation. Begin by consulting the installation manual for specific instructions and diagrams. The drain line should be connected to a floor drain or a condensate pump, depending on the setup recommended by the manual. Use durable, water-resistant tubing, such as PVC, to ensure longevity. Ensure the drain line is correctly sloped to facilitate proper water flow; the manual will specify the required slope to avoid issues like backflow or standing water. Securely connect the drain line to both the humidifier and the drainage point using appropriate fittings to prevent leaks. Plan the drain line’s route in advance to minimize bends and ensure accessibility for maintenance. If necessary, insulate the drain line in colder environments to prevent freezing. Follow the manual’s guidelines carefully to ensure efficient drainage and avoid potential damage or mold growth.
Installing the Digital Humidifier Control
Installing the digital humidifier control for the Aprilaire 700M involves mounting it in the cold air return duct. Ensure the control is placed in an accessible location for easy adjustment. Follow the manufacturer’s instructions to connect the wiring to your HVAC system. The control unit should be securely fastened to the duct using screws or clips provided. Once installed, set the initial humidity level by turning the dial to the recommended starting position, typically setting 5. Refer to the control’s menu-driven interface for precise adjustments based on your home’s conditions. Proper installation ensures accurate humidity monitoring and automatic operation. Always consult the manual for specific wiring diagrams and installation guidelines to avoid errors. This step is critical for optimizing the humidifier’s performance and integrating it seamlessly with your HVAC system. Ensure all connections are secure and test the control’s operation before finalizing the installation.
Final Connections and Checks
After completing the installation, ensure all electrical, water, and drain connections are secure and properly aligned. Verify that the digital humidifier control is correctly mounted and wired to your HVAC system. Check the water supply line for leaks and ensure the drain line is properly routed to a suitable drain location. Test the humidifier by running the HVAC system to confirm it operates smoothly and maintains the desired humidity levels. Inspect all connections for tightness and ensure there are no water leaks or electrical issues. Refer to the control’s interface to confirm proper communication with the humidifier. Finally, review the installation to ensure compliance with manufacturer guidelines and safety standards. This step ensures the system is ready for optimal performance and prevents potential issues down the line. Proper final checks are essential for a reliable and efficient operation of the Aprilaire 700M humidifier.
Post-Installation Setup
After installation, initialize the digital humidifier control by following the setup wizard. Adjust settings to match your home’s conditions and ensure proper communication with your HVAC system for optimal performance.
Initializing the Digital Humidifier Control
Initializing the Aprilaire 700M Digital Humidifier Control involves setting up the device to work seamlessly with your HVAC system. Start by turning the dial to the “Auto” mode, allowing the system to automatically adjust humidity levels based on the temperature and humidity sensors. Next, use the control panel to set the initial humidity level, typically between 30-50%, depending on your home’s conditions. Ensure the control is properly connected to your HVAC system to synchronize operation with the furnace blower. Refer to the control panel’s menu to configure additional settings, such as outdoor temperature compensation and humidity limits. This step ensures the humidifier operates efficiently and maintains a comfortable indoor environment. Proper initialization is crucial for optimal performance and to prevent issues like over-humidification or system incompatibility. Follow the on-screen prompts carefully to complete the setup process accurately. This ensures the system runs smoothly and provides consistent humidity levels throughout your home.
Setting the Initial Humidity Levels
Setting the initial humidity levels on your Aprilaire 700M is crucial for maintaining optimal indoor air quality. Start by accessing the digital humidifier control, typically located in the cold air return duct. Set the dial to an initial level of 5, which is the recommended starting point for most homes. This setting balances humidity and comfort, preventing over-humidification. Adjust the level based on your home’s specific conditions, such as size, insulation, and outdoor temperature. A humidity level between 30-50% is generally ideal. Use the control panel’s menu to fine-tune the settings, ensuring the system responds to changes in temperature and humidity. Properly setting these levels ensures efficient operation and prevents issues like condensation or dry air. Always monitor the system’s performance and adjust as needed to maintain a comfortable indoor environment. This step is essential for maximizing the benefits of your humidifier and ensuring long-term system reliability.
Adjusting Settings for Optimal Performance
After initial setup, fine-tuning your Aprilaire 700M humidifier involves accessing the digital control panel, typically located in the cold air return duct. Navigate through the menu options to adjust humidity levels and fan speeds. Consider your home’s size, insulation, and outdoor temperature when making adjustments. If you have a heat pump system, enable the specific mode for optimal performance. Utilize the control panel’s features to program different humidity levels for various times of the day or outdoor conditions. Monitor the system’s performance by checking the current humidity levels displayed on the control panel. Adjust settings gradually, observing changes in comfort and humidity levels to avoid over-humidification or under-humidification. Refer to the manual for guidelines based on square footage and insulation type. Ensure proper integration with your HVAC system for balanced performance. Regular maintenance, such as cleaning the water panel and checking the drain line, is crucial for sustained efficiency. By understanding and adjusting these settings, you can optimize humidity levels for maximum comfort and energy efficiency.
Testing the Humidifier Operation
After completing the installation and setup, it’s essential to test the Aprilaire 700M humidifier to ensure proper operation. Start by turning on the HVAC system and setting the humidifier control to the desired humidity level. Monitor the control panel to confirm that the system is active and functioning correctly. Check for water flow to the humidifier by observing the water panel or drain line operation. Ensure that the humidifier engages when the HVAC blower is running and that the system maintains the set humidity level. Verify that the drain line is draining properly and that there are no leaks. If installed on a heat pump system, ensure the unit is using hot water for optimal performance. Record the initial humidity levels and adjust settings as needed. Refer to the manual for troubleshooting steps if any issues arise during testing. Proper operation ensures efficient humidification and system longevity.
Maintenance and Troubleshooting
Regularly replace the water panel and clean the humidifier to ensure optimal performance. Check for leaks, proper water flow, and drain line functionality. Troubleshoot issues like low humidity or uneven airflow by consulting the manual or contacting a professional if needed.
Routine Maintenance Requirements
Regular maintenance is crucial for the Aprilaire 700M humidifier to operate efficiently and effectively. Start by replacing the water panel annually or as needed, ensuring clean water distribution and preventing mineral buildup. Clean the humidifier’s interior and drain line regularly to avoid mold growth and blockages. Check the water supply lines for leaks and ensure proper connections. Additionally, inspect the electrical connections and controls to maintain optimal performance. Always turn off the power and water supply before performing any maintenance tasks. Refer to the manual for specific instructions and recommended maintenance schedules. Proper upkeep not only extends the lifespan of the unit but also enhances indoor air quality and system reliability. By following these routine tasks, homeowners can enjoy consistent humidity levels and improved comfort throughout the year.
Replacing the Water Panel
To ensure optimal performance, the water panel in your Aprilaire 700M humidifier should be replaced annually or as recommended by the manufacturer. Start by turning off the power to the humidifier and closing the water supply valve. Disconnect the power and water supply lines before proceeding. Remove the cover assembly by lifting the latch at the bottom. Gently pull out the old water panel and discard it. Inspect the interior for any debris or mineral buildup and clean it with a soft brush or cloth. Install the new water panel, ensuring it is securely seated. Reattach the cover and reconnect the power and water lines. Check for leaks and test the humidifier to ensure proper operation. Regular replacement of the water panel prevents mineral buildup, maintains efficiency, and ensures clean humidification. Always refer to the manufacturer’s instructions for specific guidance on replacing the water panel.
Troubleshooting Common Issues
Common issues with the Aprilaire 700M humidifier often relate to improper installation, maintenance, or environmental factors. Low humidity output may result from insufficient water supply, clogged water panels, or incorrect control settings. Check the water panel for mineral buildup and replace it if necessary. Water leaks could indicate loose connections or improper installation of the drain line. Ensure all connections are secure and properly sealed. If the humidifier does not turn on, verify electrical connections and ensure the digital control is properly configured. In heat pump systems, using hot water is essential for optimal performance. Refer to the manufacturer’s guidelines for troubleshooting specific error codes or unusual noises. Regular maintenance, such as cleaning and replacing components, can prevent many issues. If problems persist, consult the user manual or contact a certified professional for assistance. Proper care and attention can extend the life of the humidifier and ensure consistent performance.
When to Contact a Professional
If you encounter issues beyond basic troubleshooting or feel unsure about any installation step, it’s best to contact a certified HVAC professional. Complex problems, such as faulty electrical connections or improper compatibility with your HVAC system, require expert attention. Additionally, if you’re not confident in your ability to handle plumbing or wiring, professional assistance is recommended to ensure safety and proper functionality. Persistent issues like water leaks, unusual noises, or poor humidity performance should also be addressed by a professional. They can diagnose and resolve underlying problems, such as ductwork limitations or system imbalances, that may not be apparent to a homeowner. A professional can also ensure compliance with local codes and manufacturer specifications, guaranteeing optimal performance and longevity of the Aprilaire 700M humidifier. Don’t hesitate to seek help if you’re unsure, as improper installation or maintenance can lead to reduced efficiency or system damage.
Proper installation and maintenance ensure optimal performance and longevity of the Aprilaire 700M humidifier. Follow guidelines for routine care and troubleshooting to maximize efficiency and comfort. For further assistance, refer to the manufacturer’s resources and support.
Final Checks and Verification
After completing the installation, perform a thorough inspection to ensure all connections are secure and properly configured. Verify that the water supply, drain line, and electrical connections are functioning correctly. Test the humidifier by running it through a complete cycle to ensure it operates smoothly and quietly. Check for any leaks in the water supply lines and drain connections. Ensure the digital humidifier control is initialized and set to the recommended initial humidity level. Verify that the humidistat is responding correctly to changes in humidity levels; Finally, confirm that the unit is properly integrated with your HVAC system and that all safety features are operational. If any issues are detected, refer to the troubleshooting section or consult the installation manual for guidance. Proper verification ensures optimal performance and prevents potential issues down the line.
Understanding Warranty and Support
The Aprilaire 700M humidifier is backed by a comprehensive warranty program, ensuring protection for your investment. The product typically comes with a 5-year limited warranty covering defects in materials and workmanship. Registration within 90 days of installation is often required to activate the warranty. The warranty does not cover damage caused by improper installation, neglect, or failure to perform routine maintenance. For specific details, refer to the warranty certificate provided with the unit or visit the Aprilaire website. Additionally, Aprilaire offers dedicated customer support to assist with installation, maintenance, or troubleshooting. Resources such as user manuals, FAQs, and troubleshooting guides are available online. If issues arise, contact Aprilaire’s customer service team for guidance or to determine if professional assistance is needed. Understanding your warranty and support options ensures peace of mind and helps maintain your humidifier’s performance over time.
Resources for Further Assistance
For additional support, Aprilaire provides a range of resources to help with installation, maintenance, and troubleshooting. The official Aprilaire website offers detailed product manuals, installation guides, and troubleshooting tips specific to the 700M model; Customers can also access FAQs and instructional videos to address common concerns. For personalized assistance, Aprilaire’s customer support team is available via phone, email, or live chat. Additionally, authorized dealers and HVAC professionals can provide expert guidance and repair services. The Aprilaire community forum and social media channels offer peer-to-peer advice and updates. Ensure to visit www.aprilaire.com for the most up-to-date information and support options. These resources are designed to help users maximize their humidifier’s performance and resolve issues efficiently. Leveraging these tools ensures a seamless experience with your Aprilaire 700M humidifier.
